Product Description

Device Running Video：

HXL-K Liquid Packing Machine

Application:

It is suitable for packing liquid and semi-liquid materials, such as honey, wine,sauce,oil, etc.

Features:

1.Pamameters(such as bag length, volume, speed ) can be set and displayed on the touch screen. And touch screen has English, Chinese, Russian, Spanish language.
2. Bag-making, metering, filling, sealing, cuttng, counting and batch munber printing can be finished one time.

Parameters:

Model

SJIII-S100

SJIII-S200

SJIII-S300

Drive type

pneumatic

pneumatic

pneumatic

Bag making length

40-150mm

40-260mm

40-300mm

Bag making width

25-120mm

25-120mm

70-190mm

Bag sealing style

Three-sides or four-side or back side(you can only choose one style)

Three-sides or four-side or back side(you can only choose one style)

Three-sides or four-side or back side(you can only choose one style)

Packing capacity

5-100ML

100-300ML

100-1000ML

speed

30-50 bags/min

25-40 bags/min

20-30bags/min

Power

1.4kw/220V

1.4kw/220V

1.4kw/220V

Air supply

0.8Mpa; 150L/min

0.8Mpa; 180L/min

0.8Mpa; 250L/min

Dimension

800*1000*1800mm

800*1000*2000mm

1000*1800*2100mm

weight

300kg

480kg

500kg

Packing materials

PET coated with PE; PET aluminum coated with PE; paper coated with PE or other heat-sealing composite materials

Packing film thickness

0.04-0.08mm

Min. Inner diameter of film roll

75mm

Max. Outer diameter of film roll

320mm

Standard configuration:

Fluid feeder

Fluid feeder Touch screen, which can choose English,
Chinese, Russian, Spanish language		 Color tracking sensor

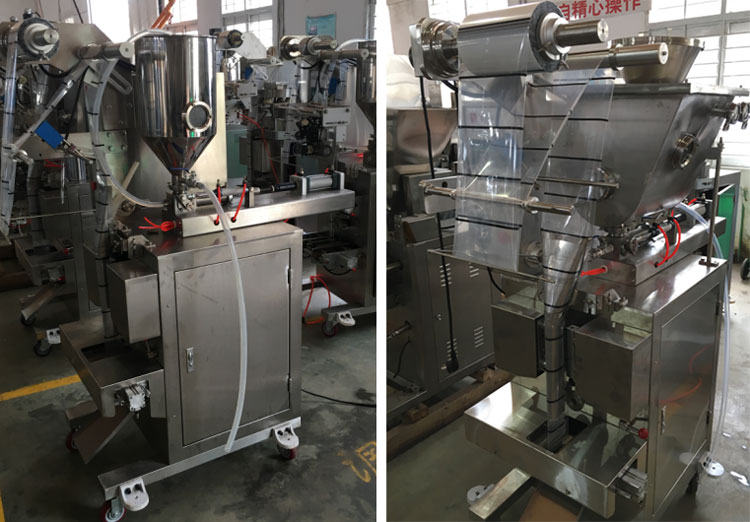

Machine display:
