Product Description



Advantages

1.The whole steel plate fuselage, interlayer paper feeding design and the style of oil poured  lubrication system is  Ensured the equipment long-term normal and Stable Work

2.Short distance double vertical axis combine advanced and high-precision cylinder open type cam drive make every stations high-speed worked accurate without mistake

3.Single wrap the leaf groove cam structure combine seesaw roof bar design can make the high-speed paper feeding go to the place accurately

4.Exquisite original creation ￠490mm mould turn plate design make the equipment work load more light and the speed to be more fast



Technical parameter

Model

JBZ-35S

Cup size

6-44OZ

Raw material

Single and double PE coating paper

Paper thickness

Body: 160-300gsm Bottom: 150-230gsm

Top mouth diameter

90mm-140mm

Bottom diameter

80mm-115mm

Bottom depth

5mm-10mm

Height

45mm-110mm

Angle

4-8°

Capacity

70-100 pieces per minute

Main motor power

2.2kw

Total power

17.5kw

Energy consumption

9.5 kw / hour

air consumption

0.4m3/min, 0.5-0.8Mpa

Weight

3500kg

Dimension

2910x1400x1800mm

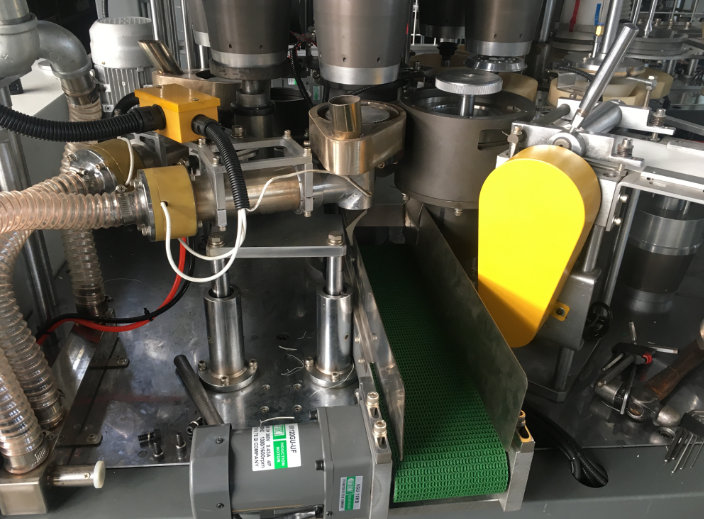

Machine detail:

1.Open cam transmission system. Unique hanging cam design to reduce pollution.

2.Automatic lubrication system. Save your labor and easier your daily work.

3.Aluminum Mold, longer using life with less abrasion.

4.Ultrasonic unit guarantee fast and good quality sealing.

5.Bottom paper feeding uses servo motor.

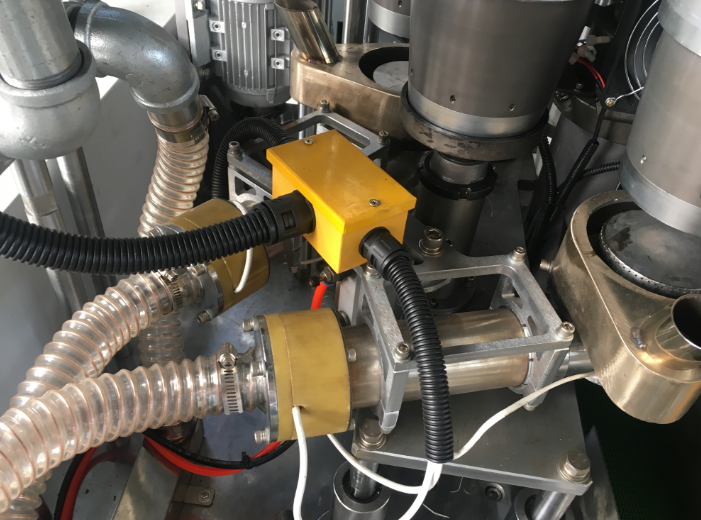

6.Using two heaters to heat up the bottom, ensure the bottom sealing and guarantee high speed production.

7.PLC control system
